12,000 POUND ROCKARMOR 4X4 WINCH - ROCKARMOR RECOVERY M8

12,000 POUND ROCKARMOR 4X4 WINCH - ROCKARMOR RECOVERY M8

GT OFFROAD SKU: RAW12000
Regular price $899.00 AUD
Regular price $1,200.00 AUD Sale price $899.00 AUD
Sale Sold out
Shipping calculated at checkout.
Quantity
View full details

12,000 POUND ROCKARMOR 4X4 WINCH - ROCKARMOR RECOVERY M8

Upgrade your recovery setup with the Rockarmor Recovery M8 12,000lb Winch, built for 4WD owners who want dependable pulling power, practical features, and more confidence when the track turns against them. Whether you’re touring remote areas, tackling muddy climbs, getting through rutted tracks, or preparing for the kind of recovery situations that come with real off-road driving in Australia, this winch is designed to be a serious part of your setup.

Delivering 12,000 pounds of line pull capacity, the Recovery M8 is powered by a 7.2HP Series Wound DC12V motor and a 3-stage planetary gear train with a 216:1 gear ratio, giving you the strength and control needed when recovery matters most. It features 28 metres of 9.5mm synthetic rope, a free spooling clutch with rotating gear ring, and an IP67 rating, making it well suited to harsh conditions, water crossings, and demanding off-road use.

The built-in wireless receiver and included wireless controller give you added convenience when setting up a recovery, while the integrated isolator switch, extended control box leads, alloy hawse fairlead, and synthetic rope pro link help round out a winch package designed with real-world usability in mind. With a mounting bolt pattern of 254mm x 114.3mm, compact overall dimensions of 535 x 162 x 170mm, and a total weight of 26kg, it is built to fit into a wide range of 4WD recovery setups.

Whether you’re heading off on weekend adventures, setting up for touring, or preparing your vehicle for tougher tracks and more remote travel, the Rockarmor Recovery M8 gives you the reassurance of having serious recovery capability on hand when you need it. Backed by a 2-year limited electrical and mechanical warranty, it is a worthwhile upgrade for drivers who want recovery gear they can rely on.


ROCKARMOR RECOVERY M8 WINCH SPECS

LINE PULL 5,443KGS / 12,000LBS
MOTOR SERIES WOUND DC12V / 7.2HP
GEAR TRAIN 3 STAGE PLANETARY
GEAR RATIO 216:1
SPOOLING CLUTCH FREE SPOOLING CLUTCH WITH ROTATING GEAR RING
IP RATING IP67 RATED
SYNTHETIC WINCH ROPE 9.5MM X 28 METRES
WIRELESS RECEIVER BUILT INTO THE CONTROL BOX
ISOLATOR SWITCH BUILT INTO THE CONTROL BOX
DRUM SIZE 64MM X 224MM
MOUNTING BOLT PATTERN 254MM X 114.3MM
DIMENSIONS 535 X 162 X 170MM
WARRANTY 2 YEARS LIMITED ELECTRICAL & MECHANICAL

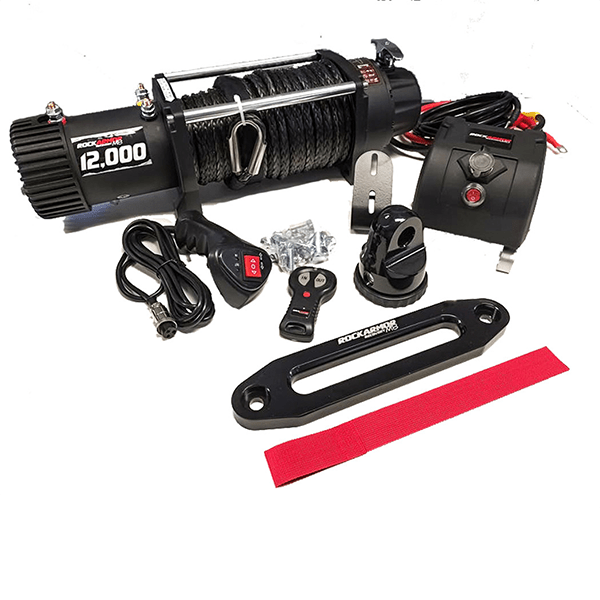

WHAT'S INCLUDED:

ROCKARMOR RECOVERY M8 12,000 POUND WINCH (WITH SYNTHETIC ROPE) YES ✅
28 METRES OF SYNTHETIC WINCH ROPE YES ✅
WIRELESS CONTROLLER YES ✅
CONTROLLER WITH EXTENSION LEAD YES ✅
WINCH CONTROL UNIT YES ✅
ROCKARMOR ALLOY HAWSE FAIRLEAD YES ✅
SYNTHETIC WINCH ROPE PRO LINK YES ✅
CONTROL BOX MOUNTING BRACKET YES ✅
HAND SAVER STRAP YES ✅
INSTALLATION GUIDE BOOK YES ✅

ADDITIONAL INFORMATION

Design Information

Designed & tested in Australia, Rockarmor’s Premium Series Steel Bull Bar has been engineered to provide your vehicle with maximum frontal protection. The Rockarmor bull bar is manufactured from premium grade 3mm steel and features a 63mm diameter cross tube, protecting your vehicles vital exterior components from potential animal strikes.

Designed to be functional for vehicles that drive both on road & off road, the Bull Bar has been engineered to store optional 4wd accessories, that include a Winch, UHF Antenna, safety flags and driving lights.

The Rockarmor Bull Bar is finished with a high quality powder coat that will withstand Australia’s harsh weather conditions and comes complete with L.E.D fog lights, L.E.D indicators, splash plates, bumper guards as well as provisions for high lift jack use.

Rockarmor’s full range of bull bars are Australian tested in the State of Adelaide, where they are put through a strict set of tests, making them ADR Complied & Air Bag Compatible, giving you full confidence your vehicle will be protected at all times.

Features
