175amp Anderson Plug | Red | Pair

175amp Anderson Plug | Red | Pair

GT OFFROAD SKU: RA-ADS01
$26.00 AUD
$0.00 AUD $26.00 AUD
Sale Sold out
Shipping calculated at checkout.
View full details

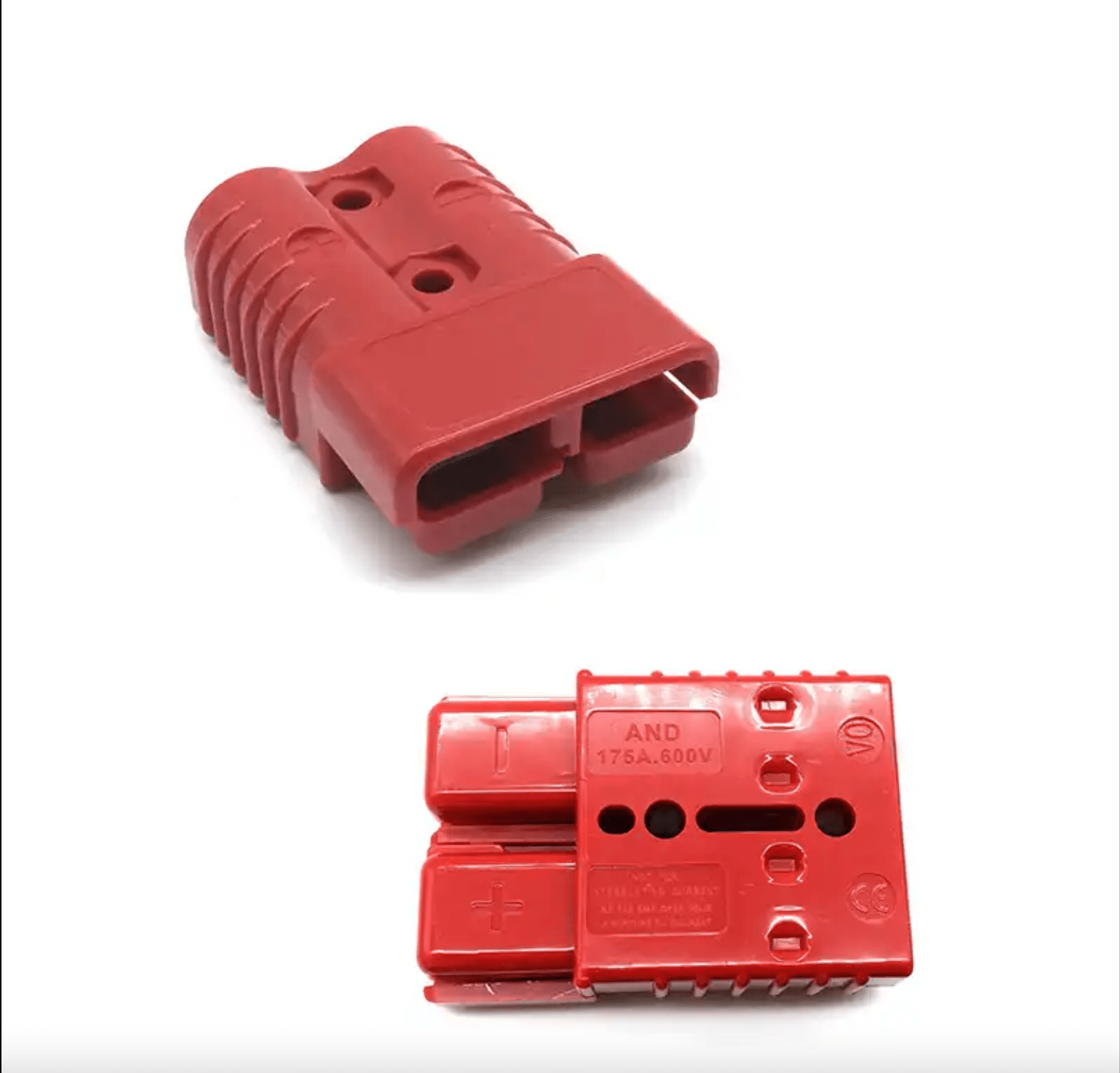

175amp Anderson Plug | Red

Sold as a pair


Product
red anderson plug
Material
PC fire-retardant materials+stainless steel
Contacts material
copper silver
Rated Current
175A
Voltage
12-36V
Gauge (AWG)
2-4 Gauge
Voltage Current
600 volts DC or AC
Product installation range
cars,off-road vehicles,buses,RVs,yachts,boats,etc.
* Fits 2-4 Gauge wire; Capacity: 175A; Voltage: 12~36V, with standing max voltage: 600V.

* Made of sturdy polycarbonate with fitted rubber boot covers; allows for quick power connection /disconnection from winches, trailers, tourism bus, electric forklift and other electrical devices.

* Easy to install. Insert the wires into the terminal pins, then solder or crimp them. Connector ends are identical, so either end is suitable for connection to the power or load side.

* Connector dimension（LxWxH）: 3.11" x 2.11" x 1" ; Connected set dimension（LxWxH）: 5.22" x 2.11" x 1".
