Ford Ranger Bullbar Protek Package | GT Bar | Runva Winch | Stedi Lights

Ford Ranger Bullbar Protek Package | GT Bar | Runva Winch | Stedi Lights

GT Offroad Logo SKU: GTRANGERPROTEK
$3,499.00 AUD
$3,599.00 AUD $3,499.00 AUD
Sale Sold out
Shipping calculated at checkout.
View full details

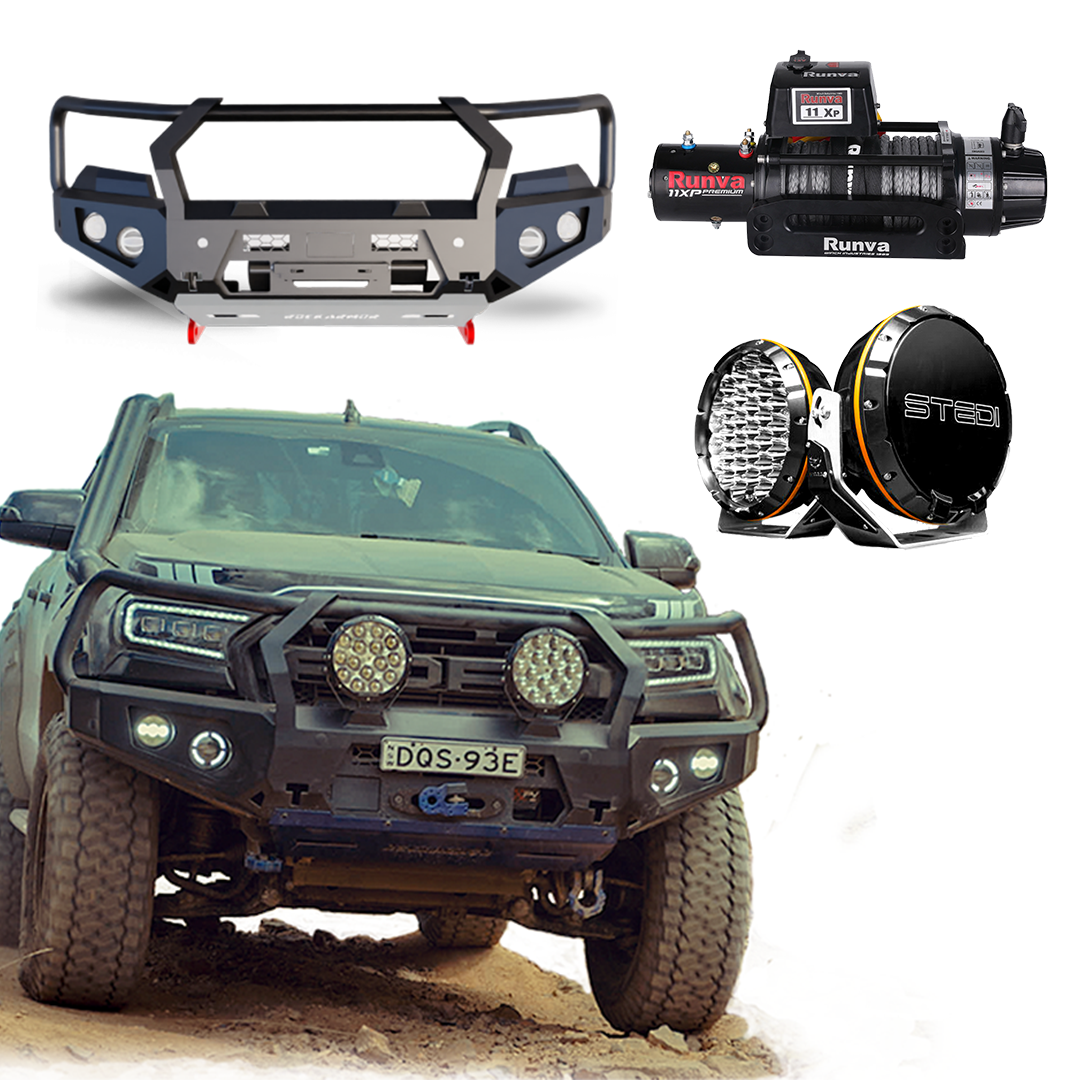

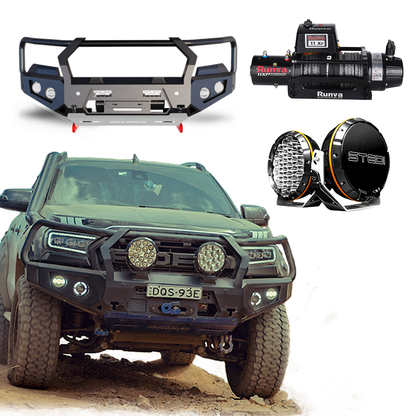

Ford Ranger Bullbar Protek Package | GT Bar | Runva Winch | Stedi Lights

Upgrade your PX2 or PX3 Ford Ranger with the Protek Pack, a complete front-end upgrade built for owners who want protection, recovery, and lighting sorted in one package. Designed to suit Ford Ranger PX2 and PX3 models from 06/2015 to 2022, this setup includes the Rockarmor GT Bull Bar, Runva 11XP Premium Winch, and a pair of Stedi Type X Sport LED Driving Lights. Please note it does not suit PX1 models.

ROCKARMOR GT BULLBAR

The Rockarmor GT Bull Bar is a full bumper replacement finished in black powder coat and built for real off-road use. It includes built-in 3.2 tonne rated recovery points, silver bash plate, LED fog lights and indicators, side under protection panels, twin hi-lift jack points, twin slotted antenna mounts, front protection buffers, and laser cut holes for driving lights. It is ADR complied, air bag compatible, factory sensor and front camera compatible, and comes with a replacement windscreen washer bottle. The bar is also designed to suit electric winches up to 12,000lb.

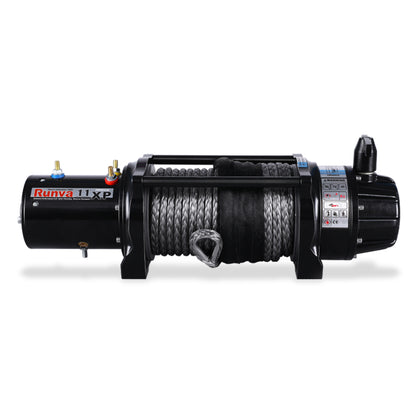

RUNVA 11XP PREMIUM WINCH

The included Runva 11XP Premium Winch comes with synthetic rope, fairlead, wireless controller, cable controller, and 28 metres of rope, giving your Ranger serious recovery capability when it counts.

STEDI TYPE X SPORT 8.5-INCH DRIVING LIGHTS

The package is finished with 1 pair of Stedi Type X Sport 8.5-inch Driving Lights, a Stedi high beam wiring harness, Stedi lights spotlight wiring loom, and a Stedi push switch, with an upgrade to Stedi Type X Pro also available.

Whether you’re setting up for touring, weekend off-road trips, or a more capable all-round Ranger, the Protek Pack is a smart all-in-one upgrade that brings together front-end protection, dependable recovery gear, and premium driving lights in one complete setup.

11XP PREMIUM TECH SPECS

RATED LINE PULL 11,000LB (4,990KG)
MOTOR (12V) 5.0KW/6.7HP; (24V) 6.0KW/8.2HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 228:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 10MM X 25M (22,500LB RATING)
DRUM SIZE 63MM X 217MM
MOUNTING BOLT PATTERN 254MM X 114.3MM
OVERALL DIMENSIONS 574MM X 160MM X 200MM
REMOTE CONTROL HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH BLACK POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
SHIPPING WEIGHT 37.50KG
SHIPPING DIMENSIONS W 0.330M, H 0.330M, L 0.635M
UNIT OF MEASURE EA

STEDI 8.5 TYPE-X SPORT

LED 36 X OSRAM OSLON SSL
RAW LUMENS 20,780 (PAIR)
TESTED LUMENS 14,950 (PAIR)
AMP DRAW 9.8A @ 13.2V (EACH)
POWER DRAW 129W
CANDELA 1,102,500CD
BEAM PATTERN 4 X SPREAD 32 X SPOT BEAM
INGRESS PROTECTION IP68, SUBMERSIBLE UP TO 3M
COLOUR TEMP (CCT) 5700K
VOLTAGE COMPATIBILITY 12V & 24V
LUMEN MAINTENANCE 50,000 LM-80
WEIGHT 3.35KG (EACH)
OPERATING TEMP -40°C - 60°C
PHOTOMETRIC DATA 10 M 11,025 LX
PHOTOMETRIC DATA 50 M 441 LX
PHOTOMETRIC DATA 200 M 27 LX
PHOTOMETRIC DATA 300 M 12 LX
PHOTOMETRIC DATA 400 M 6 LX
PHOTOMETRIC DATA 1,000 M 1.1 LX
PHOTOMETRIC DATA 1,050 M 1 LX

ADDITIONAL INFORMATION

Design Information

Designed & tested in Australia, Rockarmor’s Premium Series Steel Bull Bar has been engineered to provide your vehicle with maximum frontal protection. The Rockarmor bull bar is manufactured from premium grade 3mm steel and features a 63mm diameter cross tube, protecting your vehicles vital exterior components from potential animal strikes.

Designed to be functional for vehicles that drive both on road & off road, the Bull Bar has been engineered to store optional 4wd accessories, that include a Winch, UHF Antenna, safety flags and driving lights.

The Rockarmor Bull Bar is finished with a high quality powder coat that will withstand Australia’s harsh weather conditions and comes complete with L.E.D fog lights, L.E.D indicators, splash plates, bumper guards as well as provisions for high lift jack use.

Rockarmor’s full range of bull bars are Australian tested in the State of Adelaide, where they are put through a strict set of tests, making them ADR Complied & Air Bag Compatible, giving you full confidence your vehicle will be protected at all times.

Features
