N70 HILUX 08/2011-08/2015 GT FRONTAL PACK | GT BULLBAR, WINCH, LIGHTS

N70 HILUX 08/2011-08/2015 GT FRONTAL PACK | GT BULLBAR, WINCH, LIGHTS

GT Offroad Logo SKU: Frontalpack2
$2,598.00 AUD
$0.00 AUD $2,598.00 AUD
Sale Sold out
Shipping calculated at checkout.
View full details

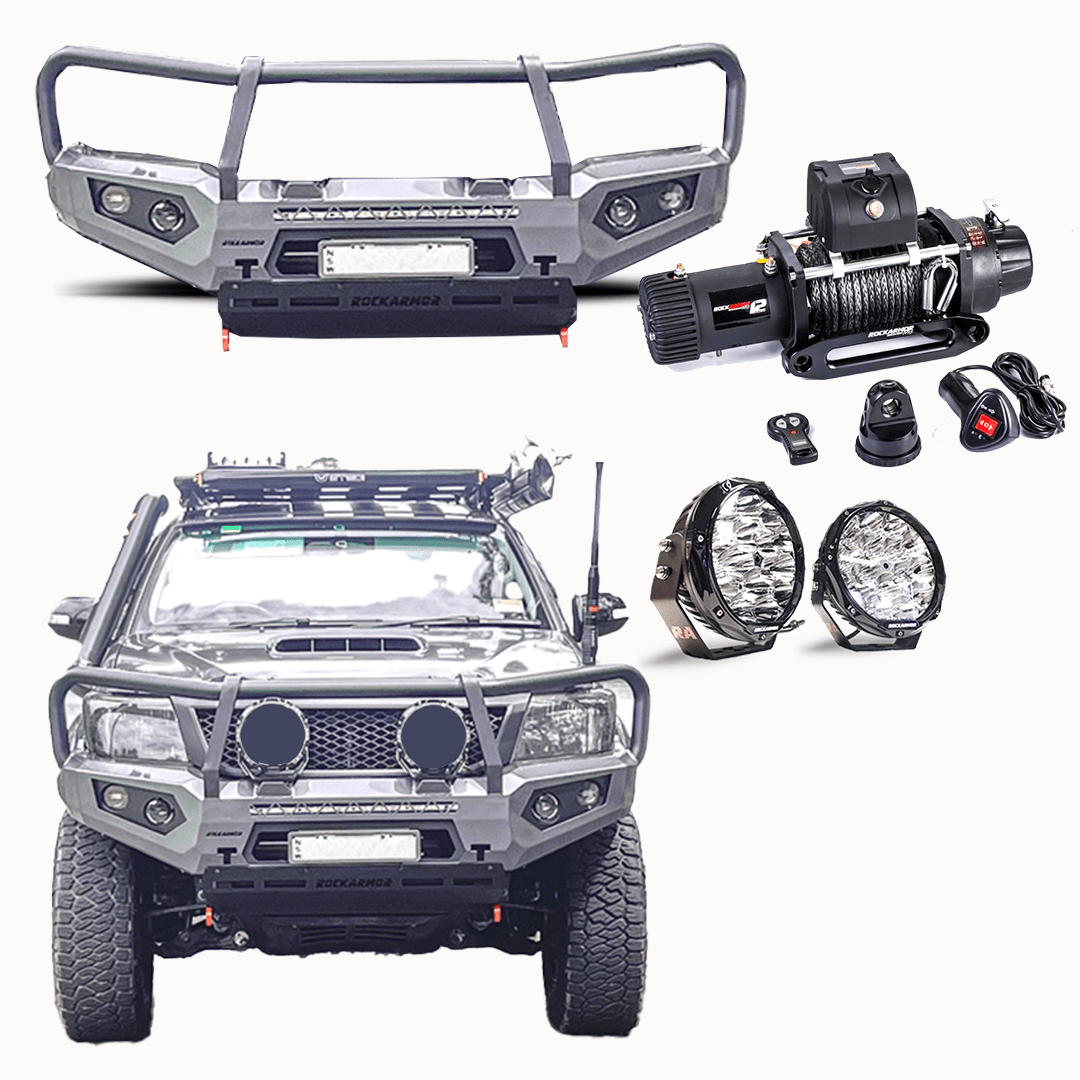

N70 HILUX 08/2011-08/2015 GT FRONTAL PACK | GT BULLBAR, WINCH, LIGHTS

Upgrade your facelift Toyota Hilux N70 with the Rockarmor GT Frontal Pack, combining front-end protection, recovery capability, and powerful LED driving lights in one complete package.

Designed to suit Toyota Hilux N70 facelift models manufactured from August 2011 to August 2015, this package includes the Rockarmor GT Hoop Bull Bar, Rockarmor 12,000lb Winch, and a pair of Rockarmor R85 8.5-inch LED Driving Lights.

The Rockarmor GT Bull Bar provides a tougher front-end appearance while adding practical protection for touring, off-road driving, and remote travel. It comes complete with rated recovery points, protection plates, LED fog lights, LED indicators, and the required mounting kit.

The Rockarmor 12,000lb Winch provides dependable recovery capability and includes a wireless controller for convenient operation. The package is completed with a pair of R85 LED Spotties for improved visibility during night driving and low-light off-road conditions.

What’s Included:

▪️ Rockarmor GT N70 Hilux Bull Bar
▪️ Rockarmor 12,000lb Winch
▪️ Pair of Rockarmor R85 8.5-inch LED Spotties

ROCKARMOR RECOVERY M8 WINCH SPECS

LINE PULL 5,443KGS / 12,000LBS
MOTOR SERIES WOUND DC12V / 7.2HP
GEAR TRAIN 3 STAGE PLANETARY
GEAR RATIO 216:1
SPOOLING CLUTCH FREE SPOOLING CLUTCH WITH ROTATING GEAR RING
IP RATING IP67 RATED
SYNTHETIC WINCH ROPE 9.5MM X 28 METRES
WIRELESS RECEIVER BUILT INTO THE CONTROL BOX
ISOLATOR SWITCH BUILT INTO THE CONTROL BOX
DRUM SIZE 64MM X 224MM
MOUNTING BOLT PATTERN 254MM X 114.3MM
DIMENSIONS 535 X 162 X 170MM
WARRANTY 2 YEARS LIMITED ELECTRICAL & MECHANICAL

R85 LED DRIVING LIGHT SPECS

VOLTAGE 9–32V
LED CHIPS 15 × 10W HIGH-INTENSITY OSRAM CHIPS
WATERPROOF & DUSTPROOF IP68
LED POWER 150W
LUMENS 16,600LM
COLOUR TEMP 6500K (KELVIN)
BEAM DRIVING SPOT
ILLUMINATION DISTANCE 1 LUX @ 800M
MATERIAL DIE-CAST ALUMINIUM WITH STEEL BRACKET
LENS MATERIAL POLYCARBONATE LENS
LIFETIME 80,000+ HOURS

ADDITIONAL INFORMATION

Design Information

Designed & tested in Australia, Rockarmor’s Premium Series Steel Bull Bar has been engineered to provide your vehicle with maximum frontal protection. The Rockarmor bull bar is manufactured from premium grade 3mm steel and features a 63mm diameter cross tube, protecting your vehicles vital exterior components from potential animal strikes.

Designed to be functional for vehicles that drive both on road & off road, the Bull Bar has been engineered to store optional 4wd accessories, that include a Winch, UHF Antenna, safety flags and driving lights.

The Rockarmor Bull Bar is finished with a high quality powder coat that will withstand Australia’s harsh weather conditions and comes complete with L.E.D fog lights, L.E.D indicators, splash plates, bumper guards as well as provisions for high lift jack use.

Rockarmor’s full range of bull bars are Australian tested in the State of Adelaide, where they are put through a strict set of tests, making them ADR Complied & Air Bag Compatible, giving you full confidence your vehicle will be protected at all times.

Features
