N80 HILUX 2015 - 2020 WEEKEND WARRIOR PACK

N80 HILUX 2015 - 2020 WEEKEND WARRIOR PACK

GT Offroad Logo SKU: Weekend-13
$6,399.00 AUD
$6,799.00 AUD $6,399.00 AUD
Sale Sold out
Shipping calculated at checkout.
View full details

N80 HILUX 2015 - 2020 WEEKEND WARRIOR PACK

Transform your Toyota Hilux N80 Dual Cab into a more capable touring and off-road vehicle with the Weekend Warrior Pack. Designed to suit Toyota Hilux N80 Dual Cab models from 2015 to 2020, this complete package combines frontal protection, recovery equipment, driving lights, side protection, suspension, communications, and a raised air intake.

The Rockarmor Elite Steel Bull Bar gives your Hilux a tougher front end while providing added protection for touring and demanding off-road conditions. The Rockarmor 12,000lb Winch with Wireless Remote delivers dependable recovery capability, while the Rockarmor R85 8.5-inch LED Driving Lights improve visibility during night driving and remote travel.

Rockarmor Rockslider Side Steps help protect the vehicle’s side sills while providing practical access to the cabin. The Dobinsons Adjustable IMS Monotube Front and Rear Suspension Kit provides a 50–75mm lift and improved suspension control across rough terrain, corrugations, and loaded touring conditions.

The package also includes an Oricom UHF Radio and UHF Antenna for reliable communication, along with a Safari V-Spec Snorkel to provide a raised air intake for dusty tracks and water crossings.

Suspension Part Numbers:

COIL SPRINGS | C59-736 × 1 PAIR
FRONT SHOCKS | IMS59-50700 × 2
STRUT TOPS | USE FACTORY STRUT TOPS
REAR SHOCKS | IMS59-50229 × 2
U-BOLT KIT | UB59-437K
SHACKLES | USE FACTORY SHACKLES
PINS | USE FACTORY PINS

Select Leaf Springs:

LEAF SPRING OPTION | EFS LEAF SPRINGS 0–300KG
LEAF SPRING OPTION | EFS LEAF SPRINGS 300KG CONSTANT GVM
LEAF SPRING OPTION | EFS LEAF SPRINGS 500KG CONSTANT GVM

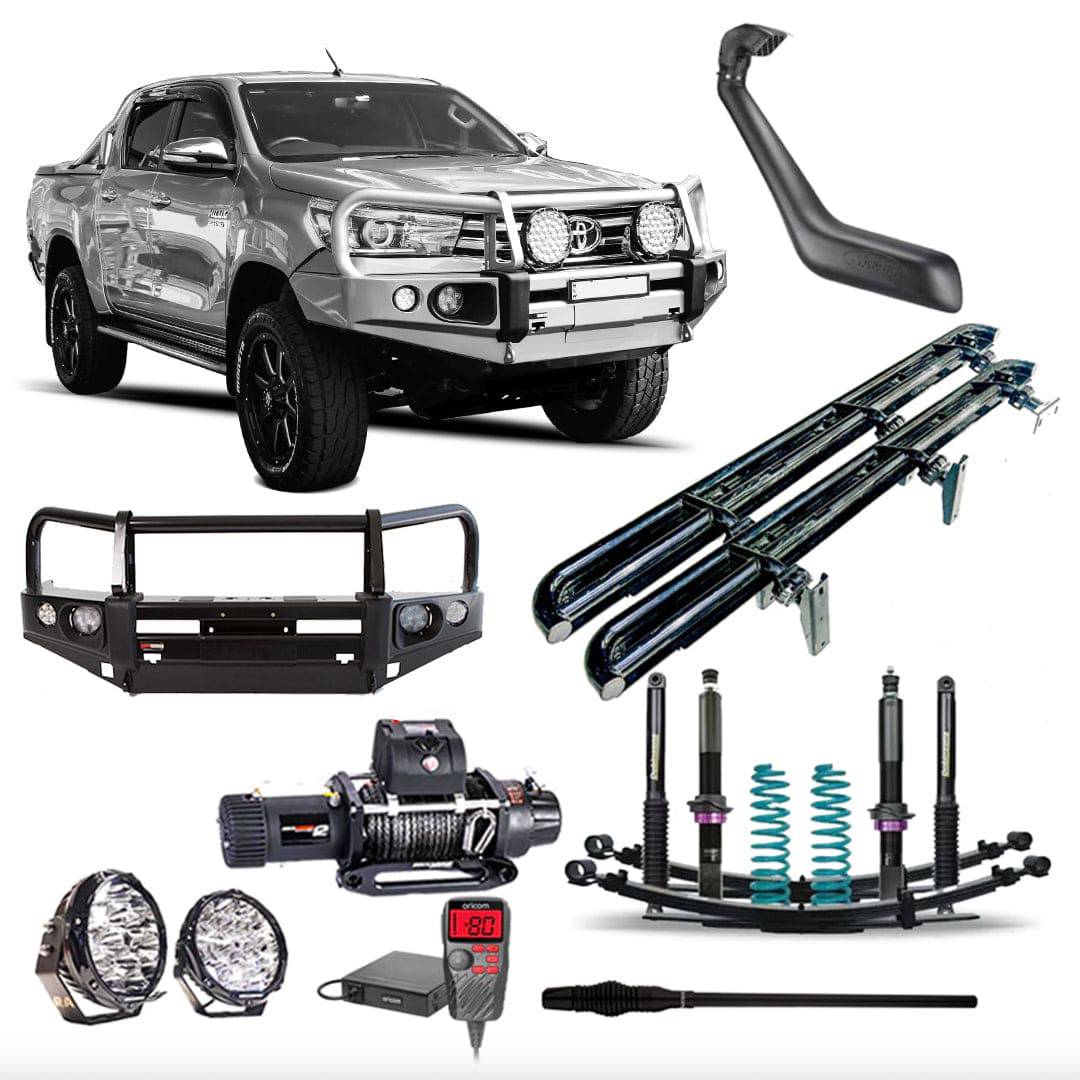

What's Included:

  • Rockarmor Elite Steel Bull Bar
  • Rockarmor 12,000lbs Winch with Wireless Remote
  • Rockarmor R85 LED Driving lights 8.5”
  • Rockarmor Rockslider Side Steps
  • 50–75mm lift kit Dobinsons Adjustable IMS Monotube Front & Rear Suspension Kit
  • Oricom UHF Radio & Uhf Antenna
  • Safari V-Spec Snorkel

ROCKARMOR RECOVERY M8 WINCH SPECS

LINE PULL 5,443KGS / 12,000LBS
MOTOR SERIES WOUND DC12V / 7.2HP
GEAR TRAIN 3 STAGE PLANETARY
GEAR RATIO 216:1
SPOOLING CLUTCH FREE SPOOLING CLUTCH WITH ROTATING GEAR RING
IP RATING IP67 RATED
SYNTHETIC WINCH ROPE 9.5MM X 28 METRES
WIRELESS RECEIVER BUILT INTO THE CONTROL BOX
ISOLATOR SWITCH BUILT INTO THE CONTROL BOX
DRUM SIZE 64MM X 224MM
MOUNTING BOLT PATTERN 254MM X 114.3MM
DIMENSIONS 535 X 162 X 170MM
WARRANTY 2 YEARS LIMITED ELECTRICAL & MECHANICAL

R85 LED DRIVING LIGHT SPECS

VOLTAGE 9–32V
LED CHIPS 15 × 10W HIGH-INTENSITY OSRAM CHIPS
WATERPROOF & DUSTPROOF IP68
LED POWER 150W
LUMENS 16,600LM
COLOUR TEMP 6500K (KELVIN)
BEAM DRIVING SPOT
ILLUMINATION DISTANCE 1 LUX @ 800M
MATERIAL DIE-CAST ALUMINIUM WITH STEEL BRACKET
LENS MATERIAL POLYCARBONATE LENS
LIFETIME 80,000+ HOURS

ADDITIONAL INFORMATION

Design Information

Designed & tested in Australia, Rockarmor’s Premium Series Steel Bull Bar has been engineered to provide your vehicle with maximum frontal protection. The Rockarmor bull bar is manufactured from premium grade 3mm steel and features a 63mm diameter cross tube, protecting your vehicles vital exterior components from potential animal strikes.

Designed to be functional for vehicles that drive both on road & off road, the Bull Bar has been engineered to store optional 4wd accessories, that include a Winch, UHF Antenna, safety flags and driving lights.

The Rockarmor Bull Bar is finished with a high quality powder coat that will withstand Australia’s harsh weather conditions and comes complete with L.E.D fog lights, L.E.D indicators, splash plates, bumper guards as well as provisions for high lift jack use.

Rockarmor’s full range of bull bars are Australian tested in the State of Adelaide, where they are put through a strict set of tests, making them ADR Complied & Air Bag Compatible, giving you full confidence your vehicle will be protected at all times.

Features
