NEXT GEN RANGER / EVEREST | ROCKARMOR FRONTAL PACK

NEXT GEN RANGER / EVEREST | ROCKARMOR FRONTAL PACK

GT Offroad Logo SKU: Frontalpack14
$2,999.00 AUD
$3,199.00 AUD $2,999.00 AUD
Sale Sold out
Shipping calculated at checkout.
View full details

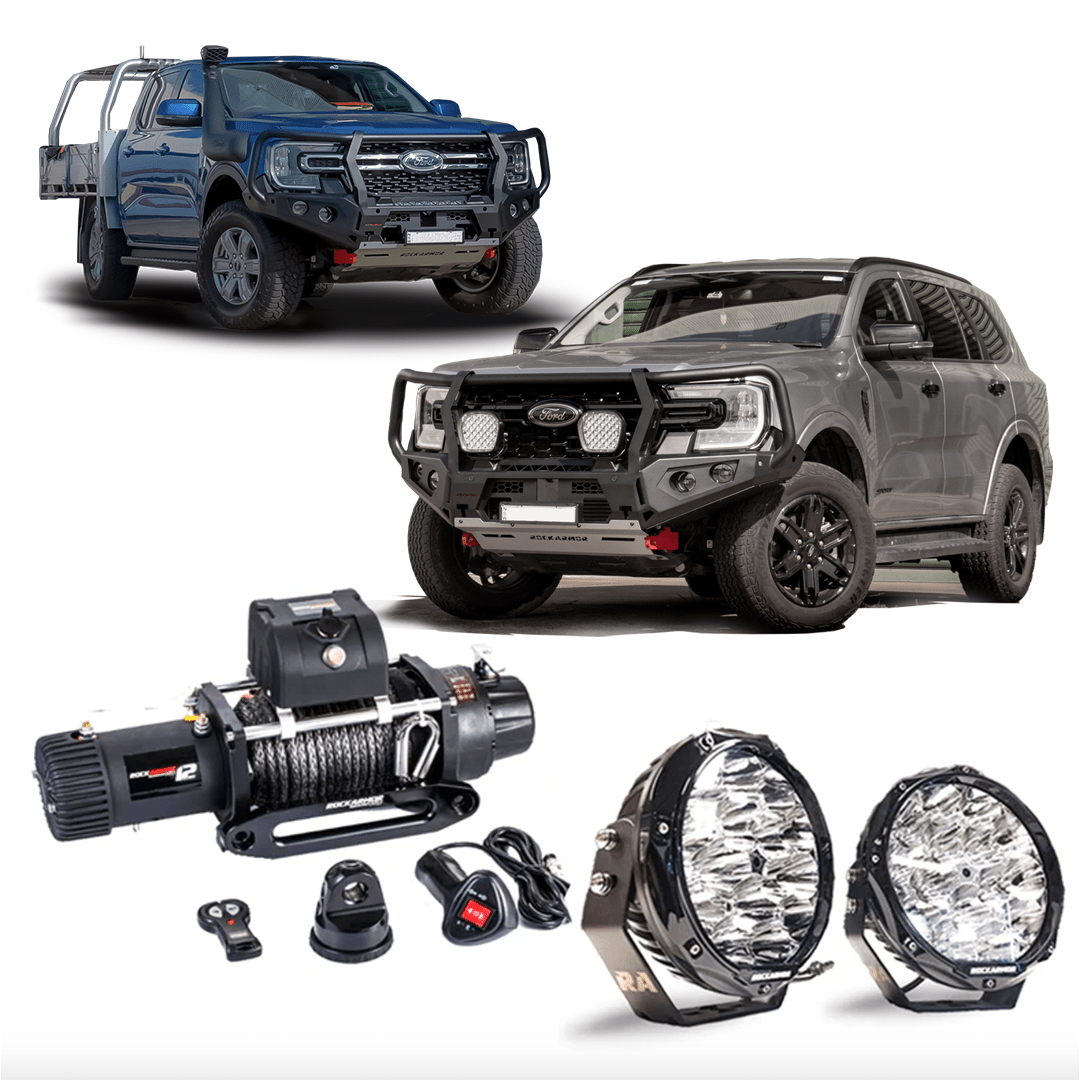

NEXT GEN RANGER / EVEREST | ROCKARMOR FRONTAL PACK

Upgrade your Next Gen Ranger, Wildtrak, or Next Gen Everest with the Rockarmor Frontal Pack, combining heavy-duty front-end protection, dependable recovery capability, and powerful LED driving lights in one complete package.

The Rockarmor GT Bull Bar is designed to work with factory technology, including parking sensors and the front camera. Its full bumper replacement design features 55mm steel tubing, integrated air vents, built-in LED fog lights and indicators, a silver bash plate, and red rated recovery points with a 5-tonne rating each.

The bull bar also includes driving light mounts, an integrated housing for an LED light bar, slotted antenna mounts, high-lift jack compatible T-slots, and high approach angles for improved off-road clearance. Please note that a light bar cannot be mounted directly in front of the factory camera.

The package is completed with a Rockarmor 12,000lb Winch with wireless remote and a pair of Rockarmor R85 LED Driving Light Spotties, giving your vehicle a complete setup for touring, recovery, and off-road use.

What’s Included:

  • Rockarmor GT Bull Bar
  • Rockarmor 12,000lb Winch with wireless remote
  • Pair of Rockarmor R85 LED Driving Light Spotties

ROCKARMOR RECOVERY M8 WINCH SPECS

LINE PULL 5,443KGS / 12,000LBS
MOTOR SERIES WOUND DC12V / 7.2HP
GEAR TRAIN 3 STAGE PLANETARY
GEAR RATIO 216:1
SPOOLING CLUTCH FREE SPOOLING CLUTCH WITH ROTATING GEAR RING
IP RATING IP67 RATED
SYNTHETIC WINCH ROPE 9.5MM X 28 METRES
WIRELESS RECEIVER BUILT INTO THE CONTROL BOX
ISOLATOR SWITCH BUILT INTO THE CONTROL BOX
DRUM SIZE 64MM X 224MM
MOUNTING BOLT PATTERN 254MM X 114.3MM
DIMENSIONS 535 X 162 X 170MM
WARRANTY 2 YEARS LIMITED ELECTRICAL & MECHANICAL

R85 LED DRIVING LIGHT SPECS

VOLTAGE 9-32v
LED CHIPS 15 x 10w High Intensity Osram Chips
WATERPROOF & DUSTPROOF IP68
LED POWER 150w
LUMENS 16,600LM
COLOUR TEMP 6500 (Kelvin)
BEAM Driving Spot
LUMINATION DISTANCE 1 LUX @800M
MATERIAL Diecast Aluminium Steel Bracket
LENS MATERIAL Poly Carbonate Lens
LIFETIME 80,000+ hours

ADDITIONAL INFORMATION

Design Information

Designed & tested in Australia, Rockarmor’s Premium Series Steel Bull Bar has been engineered to provide your vehicle with maximum frontal protection. The Rockarmor bull bar is manufactured from premium grade 3mm steel and features a 63mm diameter cross tube, protecting your vehicles vital exterior components from potential animal strikes.

Designed to be functional for vehicles that drive both on road & off road, the Bull Bar has been engineered to store optional 4wd accessories, that include a Winch, UHF Antenna, safety flags and driving lights.

The Rockarmor Bull Bar is finished with a high quality powder coat that will withstand Australia’s harsh weather conditions and comes complete with L.E.D fog lights, L.E.D indicators, splash plates, bumper guards as well as provisions for high lift jack use.

Rockarmor’s full range of bull bars are Australian tested in the State of Adelaide, where they are put through a strict set of tests, making them ADR Complied & Air Bag Compatible, giving you full confidence your vehicle will be protected at all times.

Features
