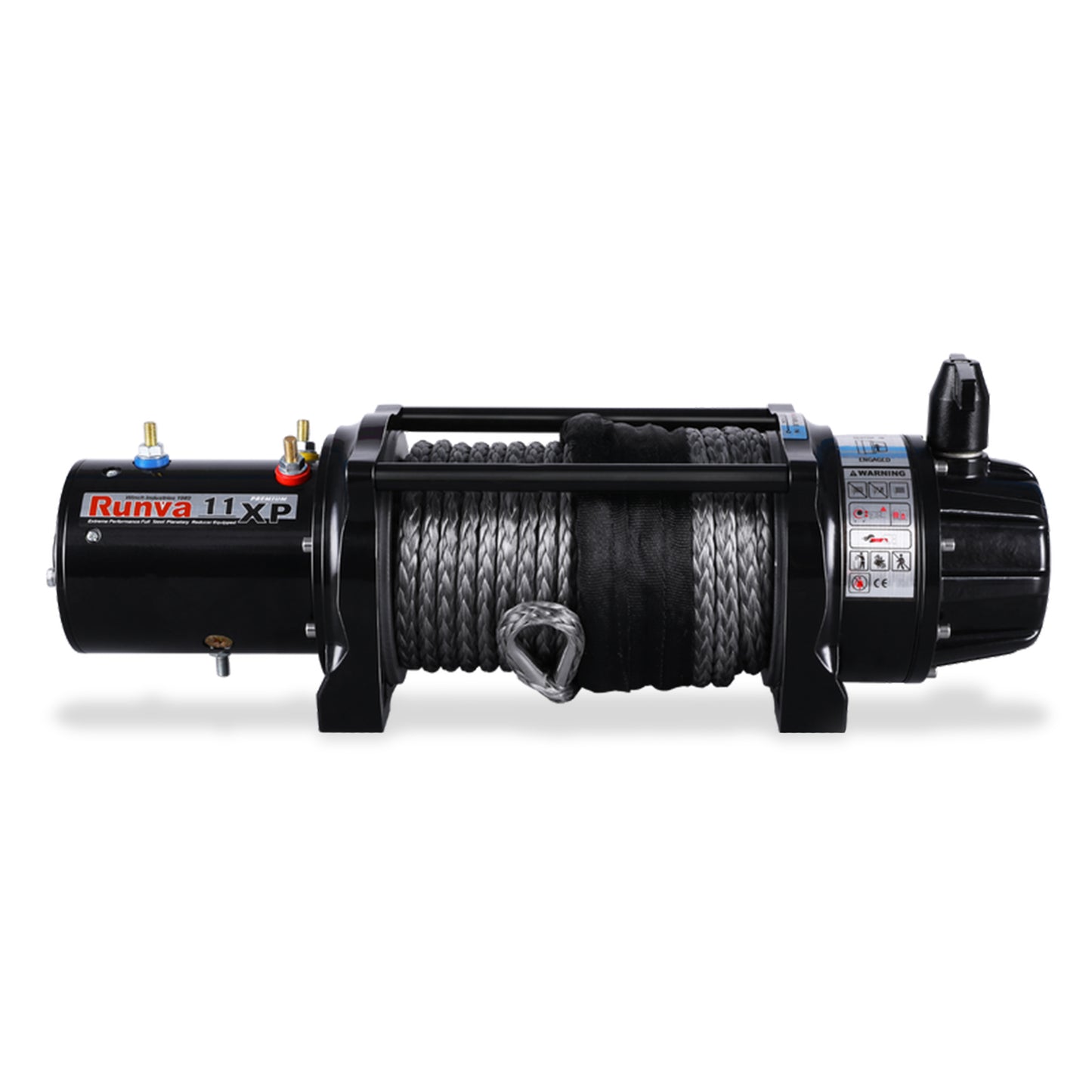

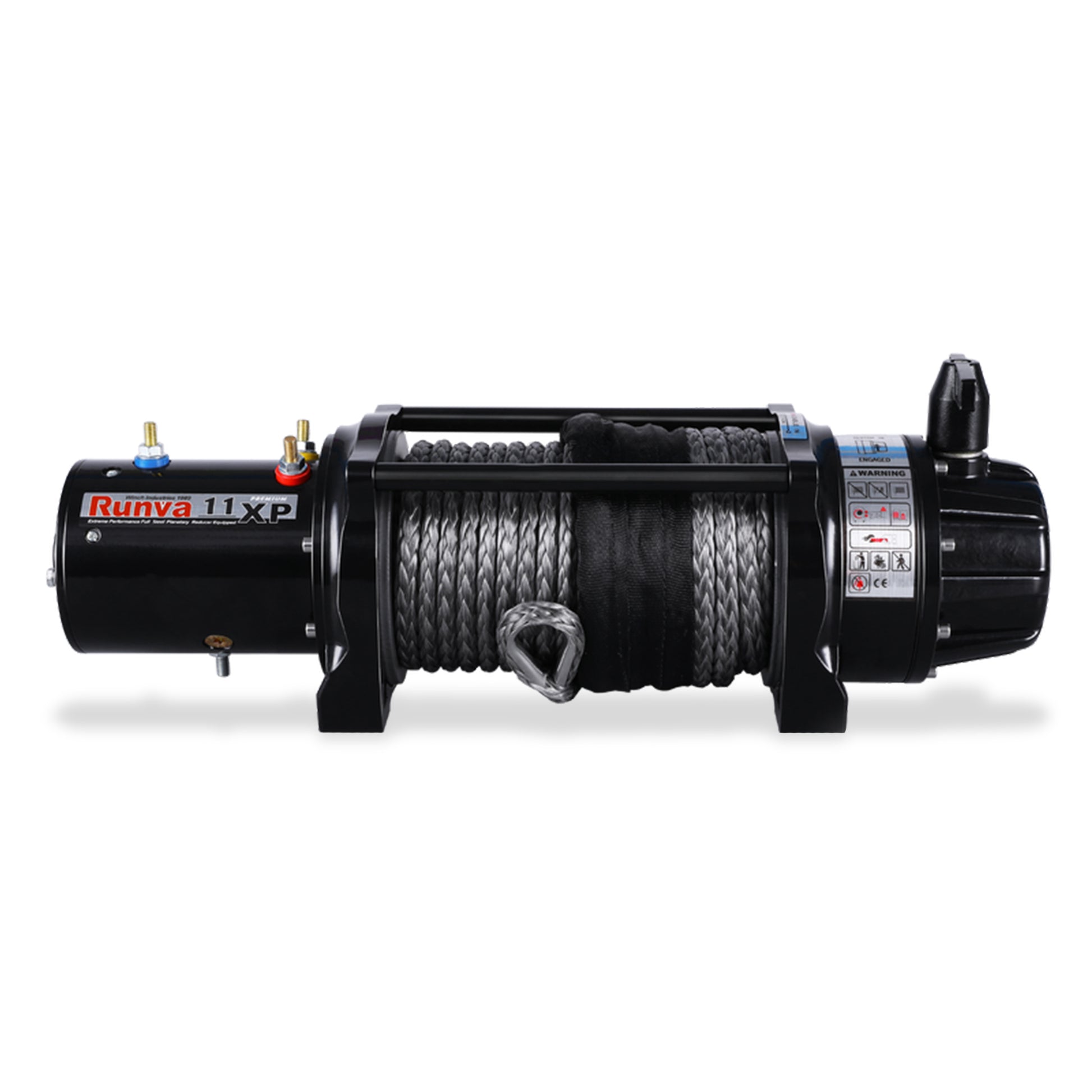

RUNVA 11XP PREMIUM 12V WITH SYNTHETIC ROPE

RUNVA 11XP PREMIUM 12V WITH SYNTHETIC ROPE

GT OFFROAD SKU: 11XPPREMIUM12VD
$1,095.00 AUD
$1,095.00 AUD
Sale Sold out
Shipping calculated at checkout.
View full details

RUNVA 11XP PREMIUM 12V WITH SYNTHETIC ROPE

THE WINCH THAT HAS IT ALL. The Runva 11XP Premium really does have it all. Perfect for just about any 4X4 on the market today - small to large. Featuring a massive 11,000lb of line pull from the powerful and reliable 6.7HP motor. The gearbox is a three stage planetary setup with tough 228:1 gear ratio to handle even the toughest recoveries. Whether you are driving a Hilux, Ranger, Landcruiser, or anything in between, this winch will get you out of trouble!

This model is also proudly featured on most of the vehicles used by 4WD 24/7. If you have seen the insane winching they do with the 11XP Premium in order to get out of the tracks they tackle, you know you are buying a quality winch that you can be confident in owning and using. After all of the winching they have done over the past couple of years, including pulling 2 dead vehicles tied together up a track, they have not had a single Runva fail on them.

This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.

The clutch is easily engaged/disengaged via the Rotary Clutch system. The 11XP Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control.


Runva 11XP Premium 12V dimensional drawing

11XP PREMIUM TECH SPECS

RATED LINE PULL 11,000LB (4,990KG)
MOTOR (12V) 5.0KW/6.7HP; (24V) 6.0KW/8.2HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 228:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 10MM X 25M (22,500LB RATING)
DRUM SIZE 63MM X 217MM
MOUNTING BOLT PATTERN 254MM X 114.3MM
OVERALL DIMENSIONS 574MM X 160MM X 200MM
REMOTE CONTROL HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH BLACK POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
SHIPPING WEIGHT 37.50KG
SHIPPING DIMENSIONS W 0.330M, H 0.330M, L 0.635M
UNIT OF MEASURE EA

ADDITIONAL INFORMATION

Design Information

Designed & tested in Australia, Rockarmor’s Premium Series Steel Bull Bar has been engineered to provide your vehicle with maximum frontal protection. The Rockarmor bull bar is manufactured from premium grade 3mm steel and features a 63mm diameter cross tube, protecting your vehicles vital exterior components from potential animal strikes.

Designed to be functional for vehicles that drive both on road & off road, the Bull Bar has been engineered to store optional 4wd accessories, that include a Winch, UHF Antenna, safety flags and driving lights.

The Rockarmor Bull Bar is finished with a high quality powder coat that will withstand Australia’s harsh weather conditions and comes complete with L.E.D fog lights, L.E.D indicators, splash plates, bumper guards as well as provisions for high lift jack use.

Rockarmor’s full range of bull bars are Australian tested in the State of Adelaide, where they are put through a strict set of tests, making them ADR Complied & Air Bag Compatible, giving you full confidence your vehicle will be protected at all times.
